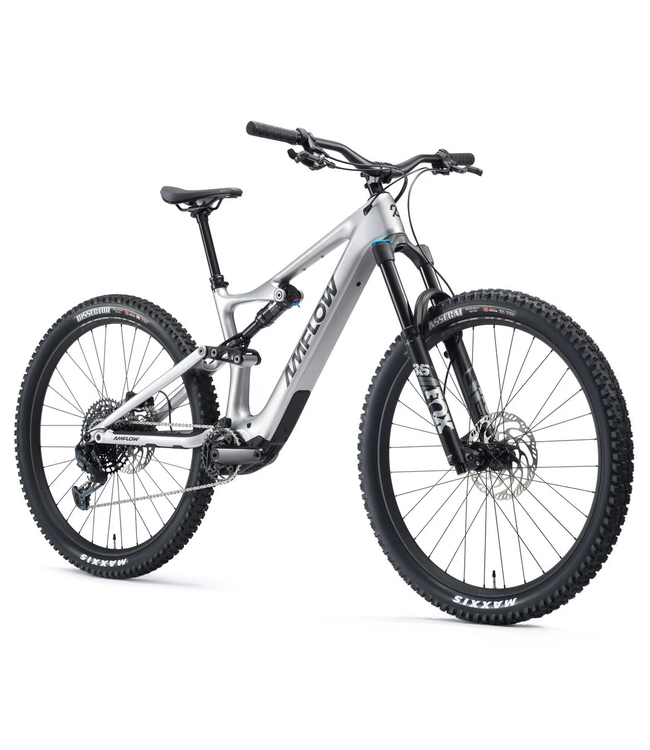

The Amflow PL electric mountain bike offers 850 watts of peak power in an ultra-light build weighing 20.6 kg (800wh Pro model - med size). With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.

Designed and manufactured by DJI, the Avinox Drive System is seamlessly integrated into Amflow PL, infusing the type of cutting-edge hardware and software that has made DJI an industry leader in drones and camera stabilization technology. The Avinox Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio.

The durable, high-strength polymer material inside the Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced DJI algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions

Frame:

• Amflow PL Carbon Frame
• Satin Silver
• 150mm rear travel
• Compatible with 27.5" and 29" rear wheels

E-Bike System

• Avinox M1 Drive Unit: 105 N·m
• Avinox Screen: 2-inch OLED Control Display
• Avinox Integrated Battery: 800Wh
• Avinox Wireless Controllers: Right and left sides
• Avinox Fast Charger: 12A/508W

Rear shock

• FOX Float PerformanceTrunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

Fork

• FOX 36 Performance 160mm travel, GRIP Damper, 15×110mm, 44mm rake

Transmission

• Rear Derailleur: SRAM GX Eagle 12-speed
• Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
• Shift Levers: SRAM GX Eagle Trigger Shifter｜Single Click
• Cassette: SRAM PG-1230, 11-50T
• Chain: SRAM NX Eagle
• Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

• Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)

Wheels

• Amflow HMC-30
• Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready
• Spokes: SAPIM E-Light J-bend
• Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
• Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

Tires

• Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
• Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar

• Amflow Enduro Alloy Handlebar
• 35mm rise, 800mm wide
• 5-degree upsweep, 9-degree backsweep

Grips

• Amflow Enduro Grips

Stem

• Amflow Enduro Stem, One-piece CNC - Length: 35mm, Clamping diameter: 35mm

Saddle

• Selle Royal SRX Plus

Seatpost

• KS Rage-i
• M: 150mm
• L/XL: 170mm
• XXL: 190mm

Accessories

• Quick Start Guide
• Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
• Shock Pump
• Front and Rear Lights
