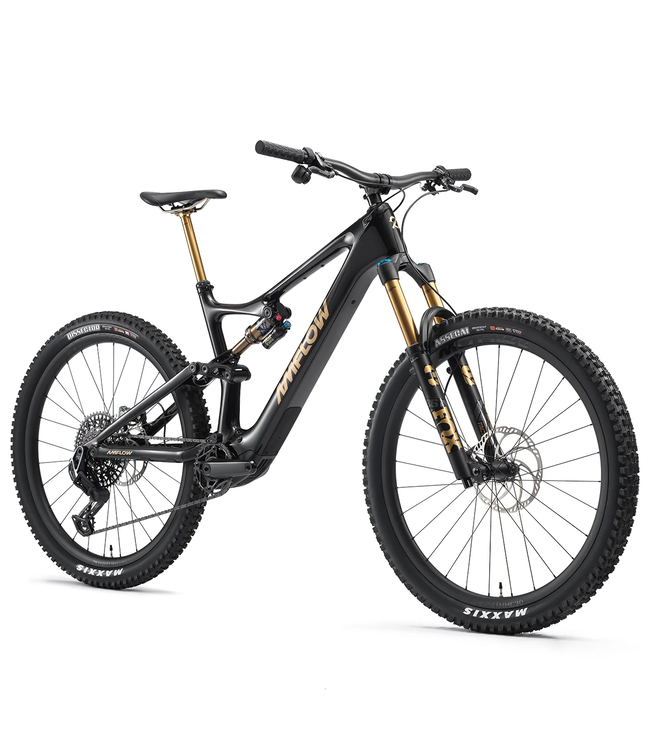

The Amflow PL electric mountain bike offers 850 watts of peak power in an ultra-light build weighing 20.6 kg's (800wh Pro Model /med size).  With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.

Frame

• Amflow PL Carbon Frame
• Cosmic Black
• 150mm rear travel
• Compatible with 27.5" and 29" rear wheels

E-Bike System

• Avinox M1 Drive Unit: 105 N·m
• Avinox Screen: 2-inch OLED Control Display
• Avinox Integrated Battery: 800Wh
• Avinox Wireless Controllers: Right and left sides
• Avinox Fast Charger: 12A/508W

Rear shock

• FOX FLOAT X Factory
• Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment

Fork

• FOX 36 Factory 160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake

Transmission

• Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable
• Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
• Shift Levers: SRAM AXS Pod Controller
• Cassette: SRAM XS-1295 Eagle Transmission 10-52T
• Chain: SRAM X0 Eagle Transmission Flattop Chain
• Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

• Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)

Wheels

• Amflow HMC-30
• Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready
• Spokes: SAPIM E-Light Straightpull
• Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt
• Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T

Tires

• Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
• Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar

• Amflow Enduro Carbon Handlebar
• 25mm rise, 800mm wide
• 5-degree upsweep, 9-degree backsweep

Grips

• Amflow Enduro Grips

Stem

• Amflow Enduro Stem, One-piece CNC
• Length: 35mm
• Clamping diameter: 35mm

Saddle

• Ergon SM PRO M/L

Seatpost

• Fox Transfer Factory, Travel adjustable in 5mm
• M: 125-150mm
• L/XL: 155-180mm
• XXL: 180-210mm

Accessories

• Quick Start Guide
• Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
• Shock Pump
• Front and Rear Lights
